Description

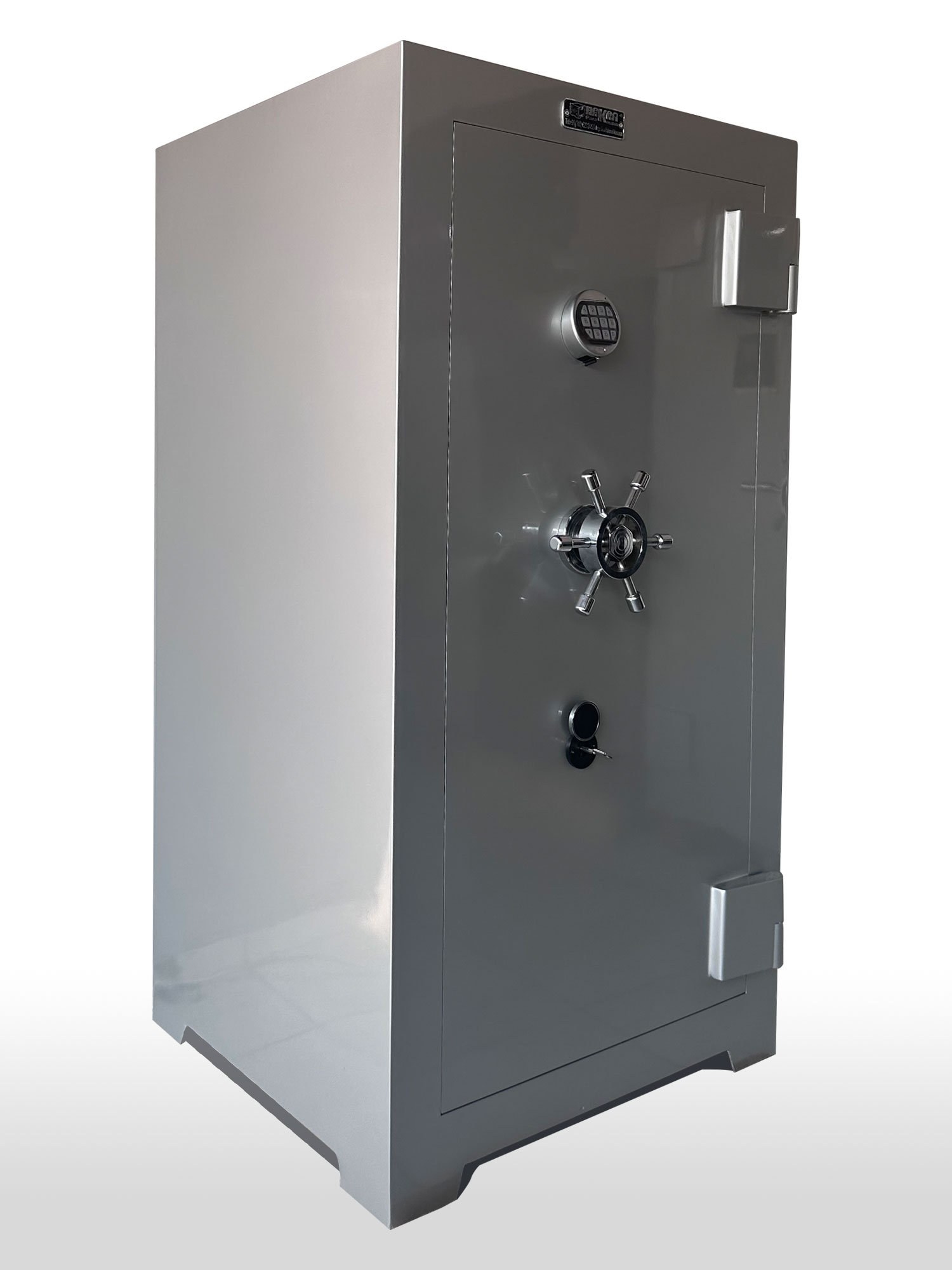

ZTK-150Body Structure
* Outer wall thickness: 8 mm steel plate for impact resistance
* Intermediate filling material: 40 mm C50 grade concrete reinforced with mesh, hardened using sand, marble dust, and liquid glass
* Inner wall thickness: 5 mm steel plate
* Door Body Structure
* Door outer wall thickness: 10 mm platinum steel plate, 17 mm cast alloy resistant to oxygen cutting, 12 mm ball bearings beneath the locks
* Nautical-style door handle mounted on the top of the door
* Intermediate filling material: 40 mm C50 grade concrete with mesh and grid reinforcement, hardened using sand, marble dust, and liquid glass
* Inner wall: 6 mm steel plate, 6 mm chrome
* Total of 14 steel bolts: 5 at the front, 5 at the back, 2 at the bottom, and 2 at the top (Steel bolt count may vary depending on the safe’s size)
* Lock and Reinforcements
* 30×30 reinforced steel plate in front of the locks to prevent drilling
* 10×30 flat bar reinforcement behind the locks
* The lock system includes 2 embedded German locks with double-sided, non-interchangeable keys and removable heads
* 1 hidden lock system that activates upon impact
* 40 mm steel reinforcement behind the lock mechanism
* 2 “Leaf Hinges” (Each hinge has a load-bearing capacity of 2 tons)
* Automatic Hercules system that self-locks upon impact
* Fire-resistant
* Resistant to drills and angle grinders
* Reinforced against oxygen torch cutting
* Special cast iron system used
* The interior can be optionally lined with velvet
* Coated with electrostatic powder paint
* DIMENSIONS:
* Height: 150 cm
* Width: 80 cm
* Depth: 70 cm
* Weight: 1100 kg
