With a 10 mm steel outer wall, C30-grade concrete, 8 mm internal steel layer, and a 17 mm hardened cast steel reinforcement at the lock center, it offers superior protection against drills and angle grinders.

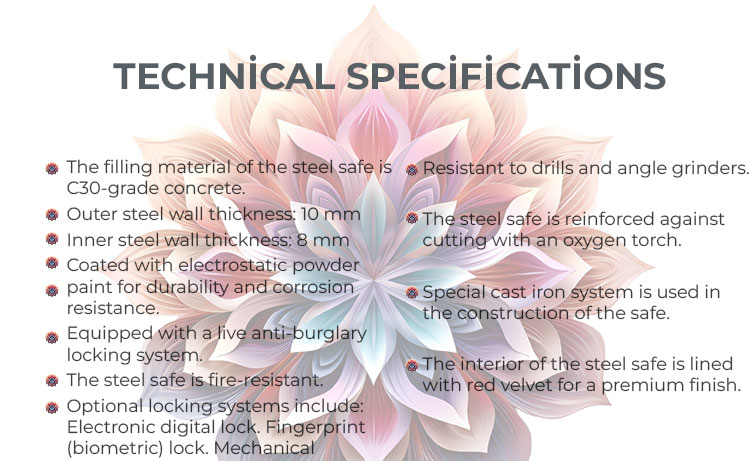

Technical Specifications
BODY STRUCTURE
Outer wall steel thickness: 10 mm (for impact resistance) (Revised from 6 mm)
Inner wall steel thickness: 8 mm (Revised from 4 mm)
Reinforced with 40 mm thick C30-grade concrete, strengthened with mesh and a filler mix of sand, marble dust, and sodium silicate
Electrostatic powder-coated finish
Fire-resistant steel safe
Mobile shelf system included
Resistant to drills and angle grinders
Reinforced against cutting with an oxygen torch
Special cast iron system integrated inside the safe

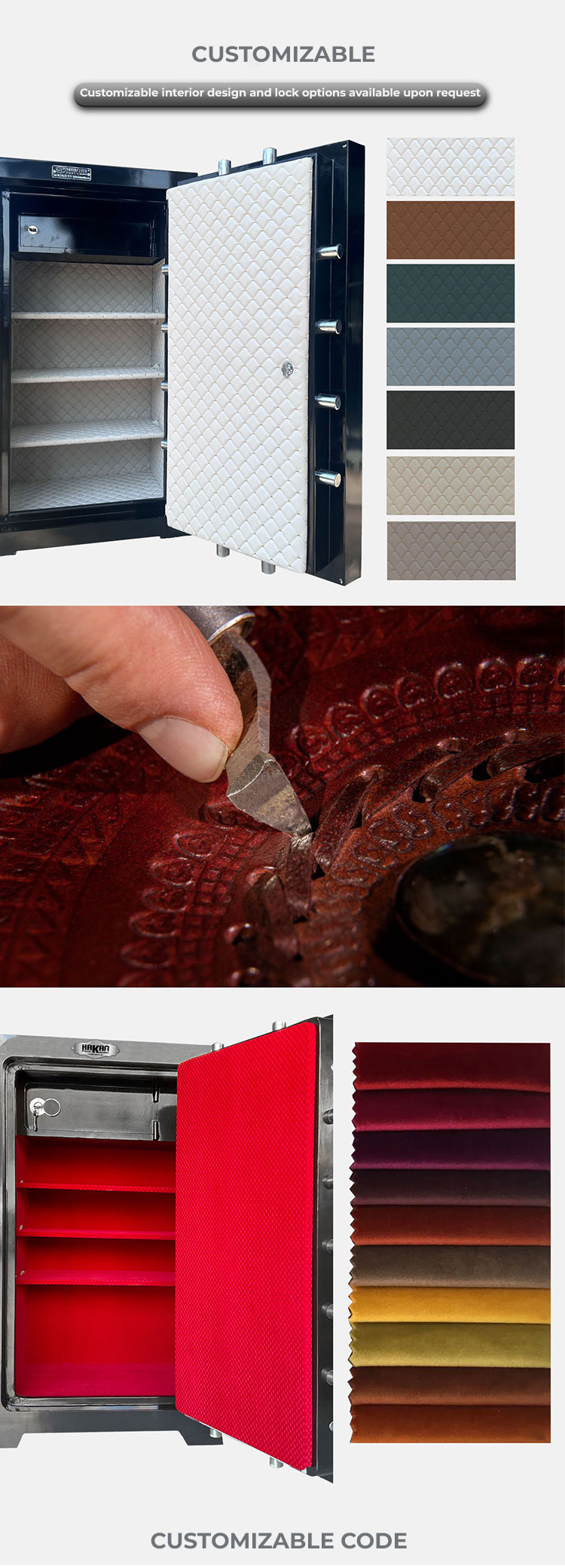

Interior lined with red velvet (customizable)
DOOR STRUCTURE
Door outer wall thickness: 10 mm hardened steel
17 mm hardened cast iron alloy core resistant to oxygen torch cutting
Reinforced filler: mesh-reinforced 40 mm C30-grade concrete with sand, marble dust, and sodium silicate
Door inner wall thickness: 6 mm steel
Locking system includes:
5 locking bolts in front
5 locking bolts in rear
2 locking bolts at the bottom
2 locking bolts at the top
Total of 14 steel locking bolts
1 concealed lock bolt
LOCKING SYSTEM & SECURITY
Front of locks protected with 30×30 mm hardened steel to prevent drilling
Rear of locks reinforced with 10×30 mm flat steel bars
Locking mechanism includes:
2 double-sided "Masis" German locks with removable heads (cannot be opened by each other) (Detail added)
1 impact-activated hidden lock system
40 mm steel plate behind the locking mechanism
1 “Captain-style” rotating handle
2 heavy-duty “Leaf Hinges” (Each hinge has a load-bearing capacity of 2 tons) (Crucial detail added)
Automatic ""Hercules"" locking system that activates upon impact
LOCK OPTIONS (Optional)
Electronic digital lock
Biometric (fingerprint) lock
Mechanical dial lock
Can be customized and combined as per request
DIMENSIONS
Height: 85 cm
Width: 60 cm
Depth: 50 cm
Weight: 400 kg
